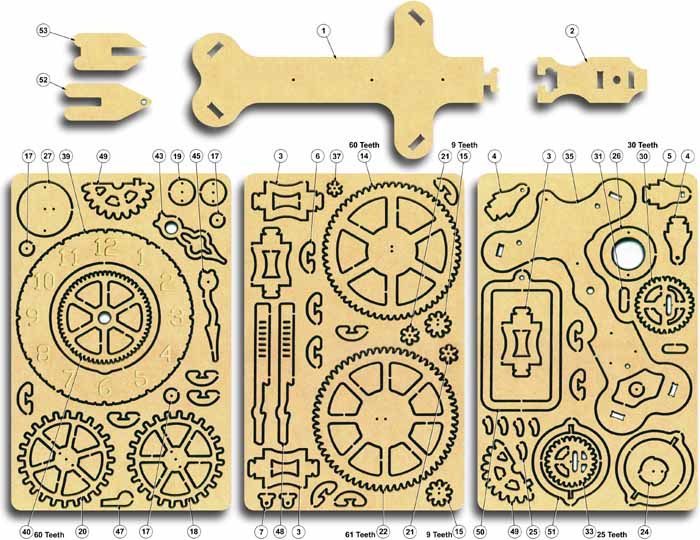

PARTS LIST - Page 1       Page 2

 1. Back board
 2. Back board top
 3. Upright (4)
 4. Swing arm upright (2)
 5. Wedge upright
 6. Lock key (11)
 7. Escapement pawl
14. Gear 60 teeth
15. Gear 9 teeth (2)

17. Spacer (4)
18. Escapement sprocket
19. Spacer (2)
20. Escapement sprocket
21. Gear 6 teeth (2)
22. Gear 61 teeth
24. Clutch
25. Clutch dog (4)
26. Clutch ring

27. Clutch cap
30. Gear 30 teeth
31. Gear key (2)
33. Gear 25 teeth
35. Front plate
37. Gear 6 teeth
39. Dial
40. Gear 60 teeth ??
43. Hour hand

45. Minute hand
47. Wedge
48. Swing arm (2)
49. Swing arm weight (2)
50. Weight frame
51. Weight ring (2)
52. Counter weight
53. Counter weight fin
